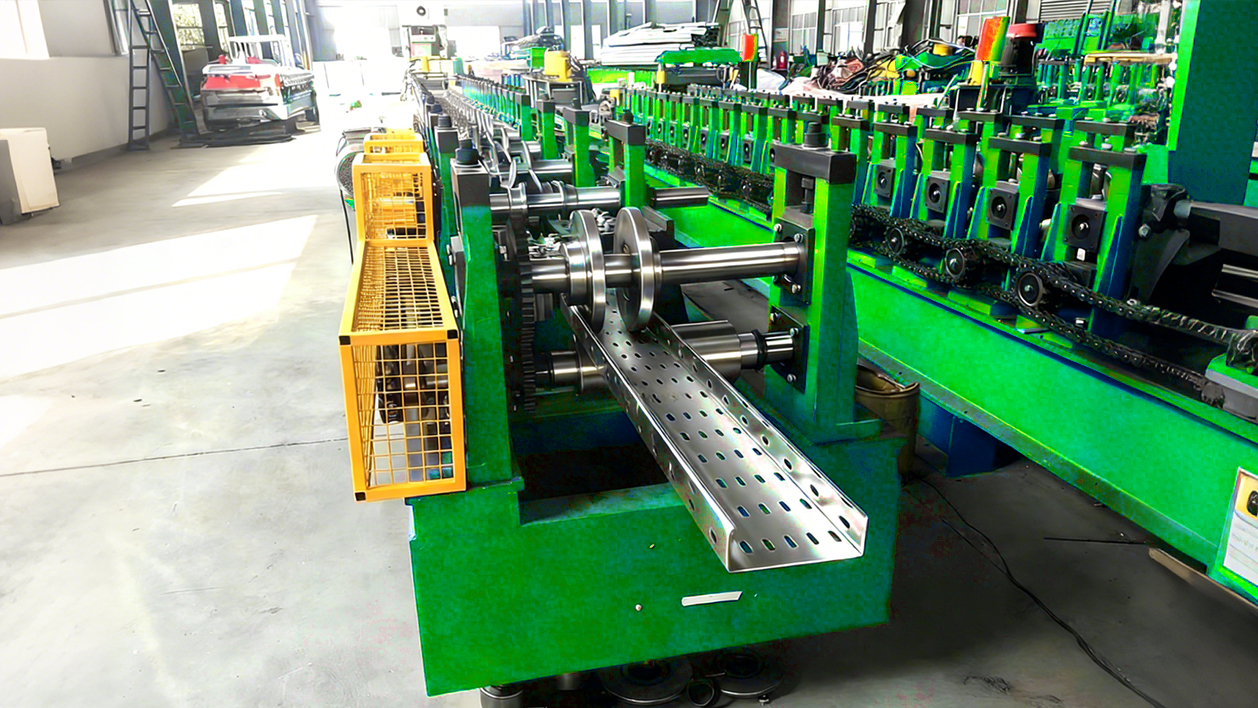

Cable Tray Roll Forming Machine

Cable Tray Roll Forming Machine automatically adjust produce the cable tray according to client requirement. Machine is controlled by PLC, fully automatic working. It can automatically record the production quantity, automatically measure the length. All the machine working actions can be controlled by PLC base control paned. The Width range is from 250mm to 600mm

Feeding device With：handwheels for suit different material thickness
Forming station:14sets
The diameter of the roller axis：85mm
Cutting type： hydraulic cutting
Material of blade: Cr12, quench treatment, hardness HRC56-58
blade advantage: easy adjustable for produce different size cable tray,no need replace cutters.
Hydraulic power: 5.5kw
PLC control brand :Delta or Simens
