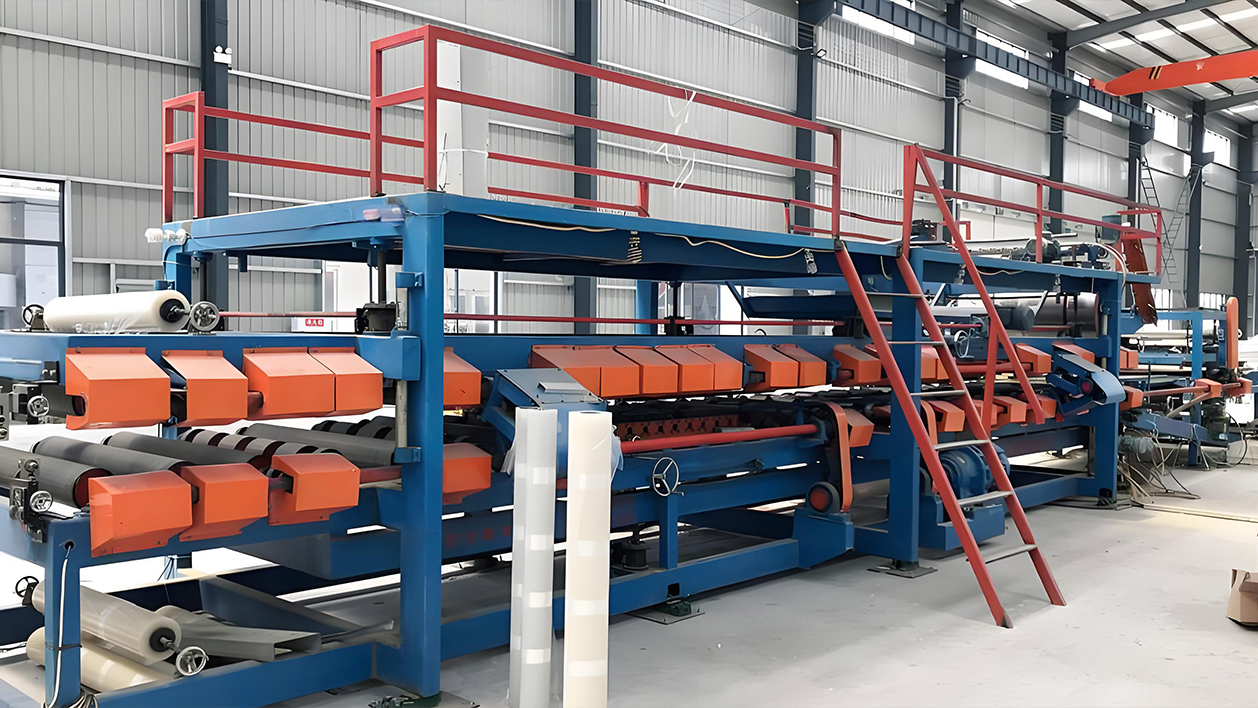

Sandwich panel roll forming machine

Insulated sandwich panel machine line has been designed for the continuous production of metal faced roofing and wall sandwich panels with thermal materials insulated mainly used for the building of prefab houses. The metal skins for roofing sandwich panels are trapezoildal roofing sheets made of pre-painted steel coils. The thermal materials for roofing and wall sandwich panels are usually EPS or XPS board.

1.Formed Material
PPGI,PPGL
Material Thickness:（0.3-1.6 mm)
2.Decoiler
Hydraulic decoiler(optional)
Manual decoiler(will give you as free）
3.Main body
Roller station 18 rows(As your requirement)
Diameter of shaft 80mm solid shaft
Material of rollers
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
Machine body frame
350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Drive gear and Double Chain transmission
